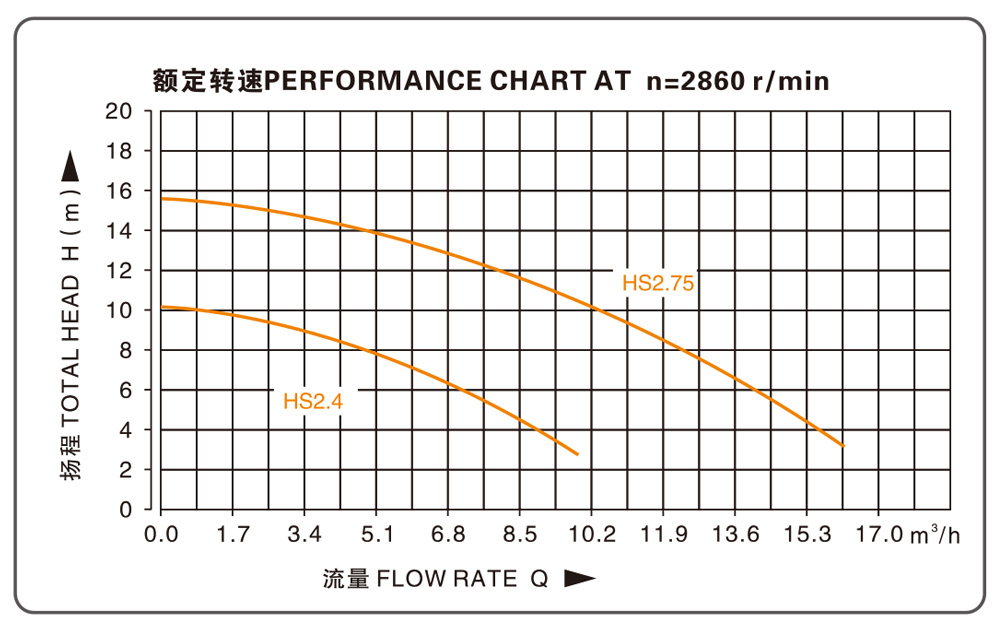

性能曲線 / Performance curve

用途與特點 / Function and Feature

HS型鋁殼潛水泵廣泛適用于農田、養殖、工礦企業和建筑工地等，具有是體積小，重量輕，使用方便等特點。配上浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過電流時會自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。(可配三相電機)

使用條件 / Condition of usag

◎ 電泵潛入水下深度不超過5米;

◎ 水溫不超過40℃;

◎ 水的PH值為6.5-8.5;

◎ 水中固體顆粒直徑不大于0.2毫米。

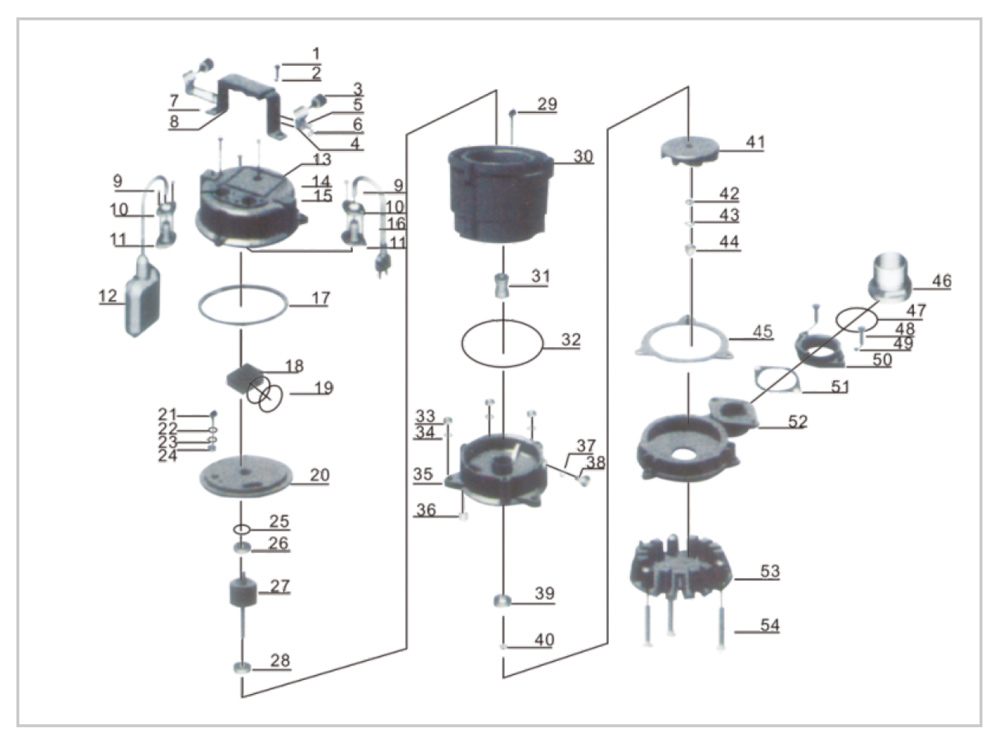

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Bolt
2	Washer
3	Protector
4	Cable presser
5	Washer
6	Screw
7	Nut
8	Handle
9	Screw
10	Flange
11	Cable protector
12	Float switch
13	Capacitor cover
14	Bolt
15	Washer
16	Cable
17	Gasket
18	Capacitor
19	"O"ring
20	Upper cover
21	Screw
22	Spring washer
23	Washer
24	Line protector
25	Undulated washer
26	Bearing
27	Rotor

NO.	DESCRIPTION
28	Bearing
29	Thermal protector
30	Stator
31	Mechanical seal
32	"O"ring
33	Nut
34	Washer
35	Connection part
36	Screw
37	"O"ring
38	Bolt
39	Oil seal
40	Washer
41	Impeller
42	Washer
43	Spring washer
44	Nut
45	Gasket
46	Out-let connector
47	"O"ring
48	Bolt
49	Washer
50	Flange
51	Gasket
52	Pump casing
53	Base plate
54	Bolt

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
HS2.4(F)	450	50	220V	230	12	13	23x19.5x38
